a jig for every job!
Take your install game up a notch. Try our jigs and spacers for a faster and easier installation.

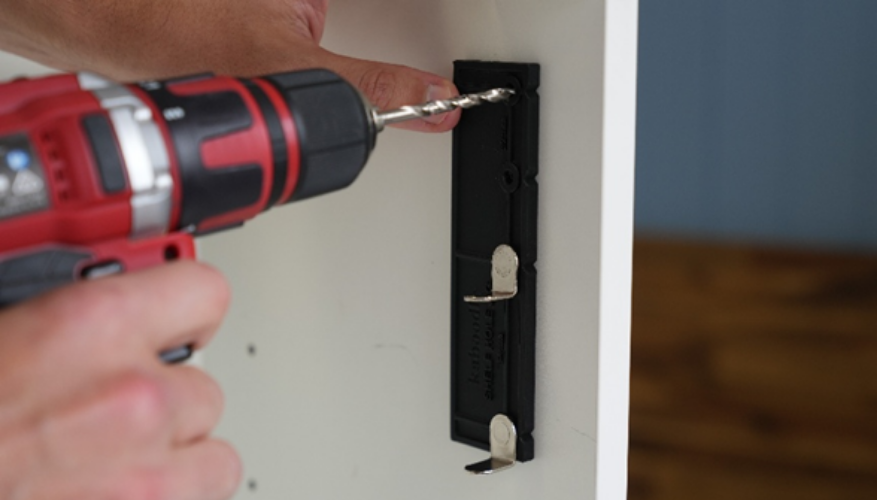

shelf hole jig
Create additional shelf holes to our cabinetry, giving your clients even more flexibility with shelf placement.
How to use: Simply align the existing shelf adjustable holes with the jig and insert the shelf support pins into the two holes. Drill the new hole, then repeat the process as many times as needed.

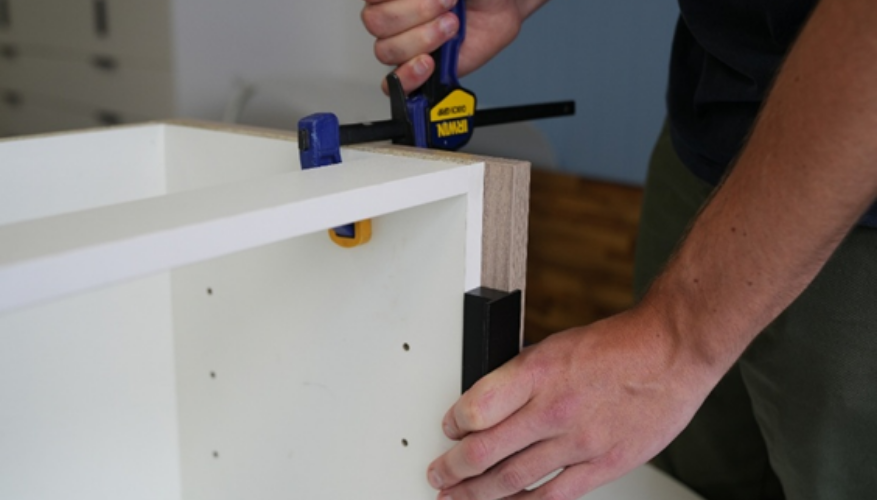

18mm panel spacer
This spacer allows you to install any of our end panels 18mm proud of our cabinets, quickly and accurately, every time.
How to use: Clamp the end panel to the cabinet, then slide our 18mm spacer along the face of the end panel, until its face rests against the cabinet.

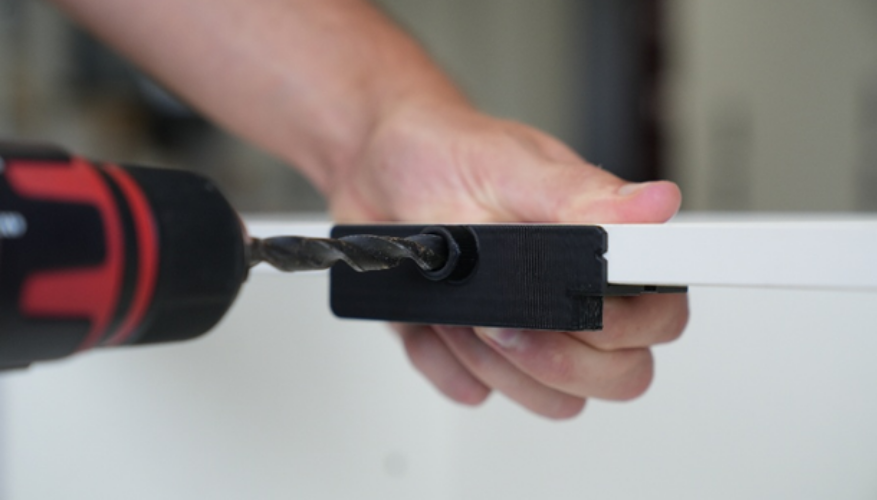

sink cabinet rail hole jig
Need to reposition a cabinet rail to install a sink? This jig helps you accurately align new holes, so you can work faster without compromising on a clean, professional finish.
How to use: Easily slide the jig against the face of the cabinet, ensuring the top is hooked over the top of the cabinet. Then, drill two clearance holes using the holes on the jig.

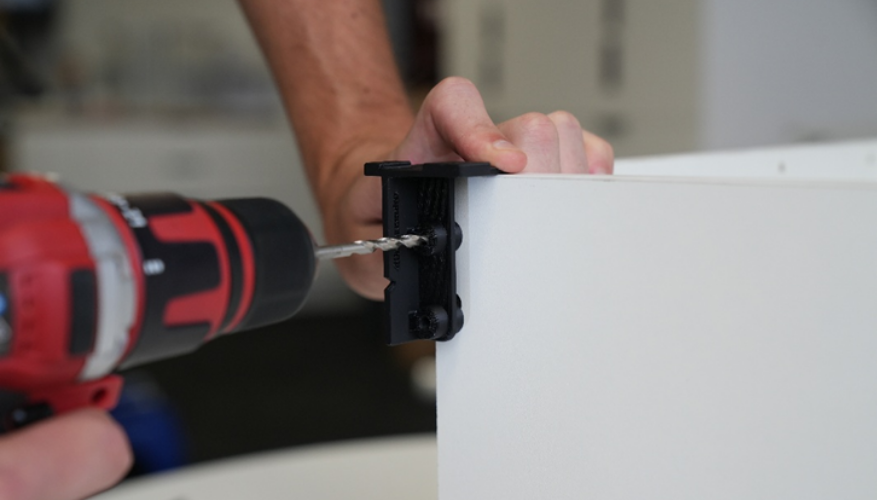

push to open jig
Achieve the perfect finish when installing our push-to-open mechanism. Users can also use this jig to convert our multi-purpose panels into doors.
How to use: Set the depth of your 10mm drill bit to the length of the gauge on the jig and tighten the drill chuck. Then, sit the jig face against the inside of the cabinet rail, and clamp on. Then, using the hole of the jig, drill through the cabinet.
what are your thoughts?
Let us know what you think of our jig sets. Did you have a favourite? Did you experience any issues? Whatever your feedback, we’d love to hear from you.
